產品簡介：南京索安X1001D(雙源雙視角)多能量,雙視角X射線檢重設備。采用兩組獨立的X光源檢貢系統,從水平和垂直兩個方向同時高諫釆集園像數據,被測物體即使仼意角度擺放,都能立體輸岀物體輪廓,有效辨識物體形狀,解決由于遮擋導致的漏檢,誤報問題。
產品簡介：
南京索安X1001D(雙源雙視角)多能量,雙視角X射線檢重設備。采用兩組獨立的X光源檢貢系統,從水平和垂直兩個方向同時高諫釆集園像數據,被測物體即使仼意角度擺放,都能立體輸岀物體輪廓,有效辨識物體形狀,解決由于遮擋導致的漏檢,誤報問題。
Product Description:
Nanjing Suoan X1001D (dual source, dual perspective) multi-energy, dual-view X-ray inspection equipment. The use of two independent X-ray source detection system, from the horizontal and vertical two directions at the same time to collect the high concentration of image data, the object to be measured even if the intentional angle of placement, can be three-dimensional transmission outline of the object, effective identification of the object shape, to solve the problem of missed detection, false alarm caused by the blocking.
產品優勢：
真實參數 : 產品實際使用中的各項性能參數與公安部出具的檢測報告完全一致,檢測報告結果更真實可信。
穩定可靠 : 產品生產過程嚴格按照ISO9001質量管理體系進行管控,通過嚴格的高低溫試驗、濕熱試驗和震動試驗,確保產品無故障連續運行10000小時以上。
穩固機架 : 選用國標304不銹鋼、2-3mm國標冷軋板及方通鋼材,融合先進的工藝,結構穩定牢圄、防銹防防線纜損傷。
Product advantages:
Real parameters : The performance parameters of the product in actual use are exactly the same as the test report issued by the Ministry of Public Security, and the test report results are more real and credible.
Stable and reliable: The product production process in strict accordance with ISO9001 quality management system control, through the strict high and low temperature test, damp heat test and vibration test, to ensure that the product trouble-free continuous operation of more than 10000 hours.
Stable rack: The national standard 304 stainless steel, 2-3mm national standard cold-rolled plate and square steel, the integration of advanced technology, stable and firm structure, rust and cable damage prevention.

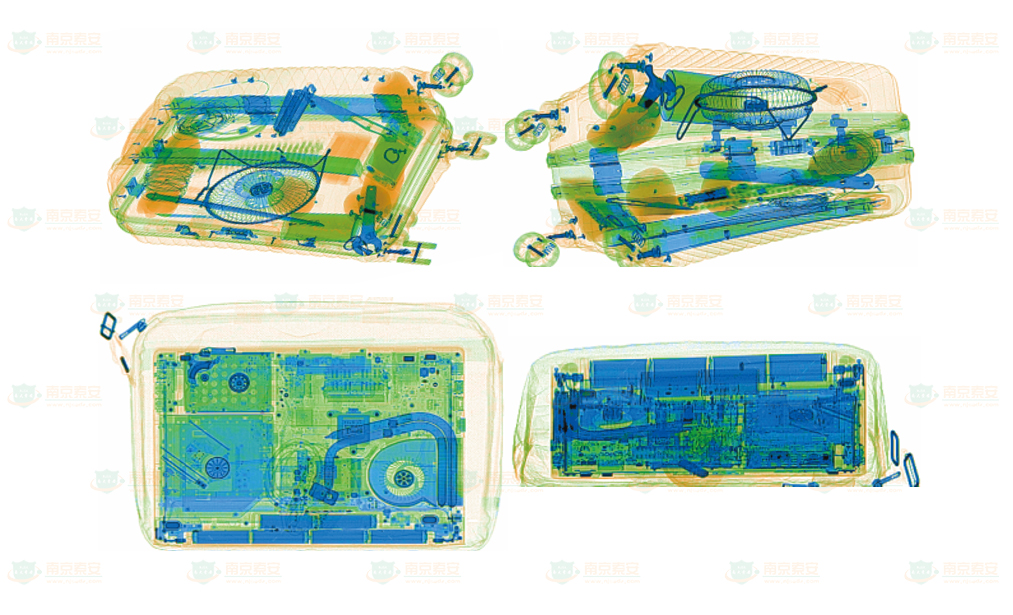

檢測效果圖：
技術指標：
基本參數 1000mm(寬)*1000mm(高)
傳送帶速度 0.22m/s
最大負載能力 200kg
穿透力 底照視角:大于40mm鋼板 側照視角:大于40mm鋼板
線分辨力 底照視角:Φ0.0787mm金屬絲 側照視角:Φ0.0787mm金屬絲
穿透分辨力 底照視角:Φ0.202mm金屬絲 側照視角:Φ0.160mm金屬絲
空間分辨力 底照視角:水平:Φ1.mm, 垂直:Φ10mm 側照視角:水平:Φ1.0mm, 垂直:Φ1.0mm
Technical indexes:
Basic parameters 1000mm(width)*1000mm(height)
Conveyor speed 0.22m/s
Maximum load capacity 200kg
Penetrating power Bottom illumination view: more than 40mm steel plate Side illumination view: more than 40mm steel plate
Line resolution Bottom view:Φ0.0787mm wire Side view:Φ0.0787mm wire
Penetration resolution Bottom view:Φ0.202mm wire Side view:Φ0.160mm wire
Spatial resolution Bottom view: Horizontal:Φ1.mm, Vertical:Φ10mm Side view: Horizontal:Φ1.0mm, Vertical:Φ1.0mm
輻射安全：
單次檢直劑量 小于3.1uGy
世露射線劑量率 小于0.2uGy/h(在距設備外表面5cm的任意處測試均符合且優于國內外健康安全標準)
高效防輻射 采用雙層錯縫、耐磨、結實的鉛簾,超厚2-5mm鉛板確保設備安全可靠
Radiation safety:
Single inspection straight dose Less than 3.1uGy
Silu radiation dose rate Less than 0.2uGy/h (tested at any distance of 5cm from the outer surface of the equipment, it meets and exceeds domestic and international health and safety standards)
Highly effective radiation protection Double staggered, wear-resistant and sturdy lead curtain and extra thick 2-5mm lead plates are used to ensure the safety and reliability of the equipment.
X射線發生器：
數字接口 管電壓80-160KV(可調),電流0.3-1.2mA(可調)
冷卻/工作周期 密封式油冷/100%
X-Ray Generator:
Digital Interface Tube voltage 80-160KV(adjustable),current 0.3-1.2mA(adjustable)
Cooling/working cycle Sealed oil cooling/100%
設備功能：
圖像處理功能 彩色/黑白、局塇、高穿、低穿、超塇、有機物剔除、無機物剔除、反色、加亮、減暗、灰掃、放大、偽彩、有機物塇強、疑物品報警標記、邊緣強處理
系統功能 開機目檢、多級用戶管理、圖像管理、邗P管理、曲線診斷、鍵盤診斷、設備信息查詢、多格式園像導岀、SD操作功能、圖像鏡像、1-64倍無級放大、放大鏡、操作員培訓、精準 定位過包圖像、清空通道提酲、遠程操作軟件、一鍵關機、智能滾筒(選配)
Equipment functions:
Image processing functions Color/black-and-white, local, high penetration, low penetration, super high penetration, organic rejection, inorganic rejection, inverse color, brightening, darkening, gray sweep, enlargement, pseudo color, organic reactive, suspect alarm mark, strong edge processing
System Functions Power-on visual inspection, multi-level user management, image management, general-purpose management, curve diagnosis, keyboard diagnosis, equipment information query, multi-format garden guide out, SD operation function, image mirroring, 1-64 times stepless magnification, magnifying glass, operator training, accurate positioning of overpacked images, emptying the channel to raise the effect, remote operation software, one-key shutdown, intelligent roller (optional)
結構設計：
防夾手裝置 通道進出口的皮帶下方及接物架獨特防夾手設計、安全可靠
立體指示燈 四角立柱指示燈,全角度及時顯示設備工作狀態,外形簡約美觀
人性化設計 專業鍵盤,配合符合人體工程學設計的工作臺,使用便捷,舒適
優質皮帶 輸送帶表面鉆石紋面印花、使用中更耐切割、耐刮花;3mm厚度更耐拉伸,不易變形;表面防靜電處理,使用時不易被污染
Structure design:
Anti-pinch device The unique anti-pinching design of the belt under the entrance and exit of the channel and the receiving frame are safe and reliable.
Stereo Indicator Four-cornered column indicator, full-angle timely display of equipment working status, simple and beautiful appearance
Humanized design Professional keyboard, with ergonomic design of the table, easy to use, comfortable
Quality belts The surface of the belt is printed with diamond pattern, which is more resistant to cutting and scratching in use; the 3mm thickness is more resistant to stretching and not easily deformed; the surface is antistatic, which is not easily contaminated in use.
安裝數據：
外形尺寸(不含接物架) 3916mm(長)*1781mm(寬)*1885.5mm(高)
工作電源 220VAC(±10%)50±3Hz
功耗 1.5KW
Installation data:
Overall dimensions (without receiving frame) 3916mm(L)*1781mm(W)*1885.5mm(H)
Working power 220VAC(±10%)50±3Hz
Power consumption 1.5KW
